WOMO-Xplorer Portable Filter System

Description

The WOMO-Xplorer is a four-stage portable water filter designed to draw, filter and sterilise fresh surface water such as rivers and lakes featuring an inbuilt water pump and an innovative UV-C led water steriliser made in Germany.

Fresh Surface Water

Easily accessible inlet and outlet connections, 12 volt Anderson plug and a convenient on-off switch operate pump and UV-C unit. Water is drawn from a stainless steel pre-filter (stage 1) into a ceramic filter cartridge forming a physical barrier for microorganisms (stage 2) and an integrated carbon block cartridge filtering chemicals, heavy metals, taste and odour (stage 3) before being sterilised through the UV-C unit (stage 4).

Mains Water

The WOMO-Xplorer Filter System is incredibly versatile: a bypass connection makes it possible to switch to a different water source, from fresh to mains water by-passing the water pump and UV-C led water steriliser where not needed.

Made of durable and quality materials WOMO systems are built to last. German engineered, build in Perth.

Specifications:

• UV-C led Water Steriliser
  • Made in Germany
  • Sterilising performance: 99.999 %
  • LED light life: over 26 years when used for 0.5 hour daily
    • Approx. 5000 hours of dispensing water
    • Unlimited switching cycles
  • Maintenance-free, no light bulb replacement required
  • Flow rate: up to 8.0 L/min
  • Dimensions: 113 x 159 x 105 mm (WxHxD)
  • Weight 0.9 kg
  • Max. pressure: 500 kPa
  • Operation monitoring: steady green light when in operation, flushing green light on stand-by
    • Operation mode: max. 1.2 A
    • Stand-by mode: max. 0.02 A
• Ceramic-Carbon Block Filter Cartridge Mini
  • Application: fresh surface water
  • Ceramic 0.2 micron, physical barrier for microorganisms
  • Carbon 5.0 micron, filtration of chemicals, taste & odour, pesticides, toxic organic compound, VOC
  • Carbon component made of 100% coconut shell
  • Cartridge size: 2.5″ x 5″
  • Flow rate: up to 3.0 L/min
    • Optional add-on for increased flow rate: 0.5 micron carbon filter cartridge without ceramic barrier up to 12 L/min (mains water only)
  • Cartridge life: 3-6 months, subject to water quality and usage
• Pentair SHURflo 4009 Water Pump
  • Flow rate: 11 L/min
  • Volts: 12 V
  • Dimensions: 111 x 125 x 250 mm (WxHxD)
• Reinforced Filter Housing
  • Quality polypropylene made in Europe
  • Three-piece for easy opening/closing
  • Clear housing sump for cartridge visibility
  • Max. pressure: 500 kPa
• Protective Case
  • Dimensions: 465 x  175 x 360 mm (WxHxD)
  • Fuse protection: 7.5 amp

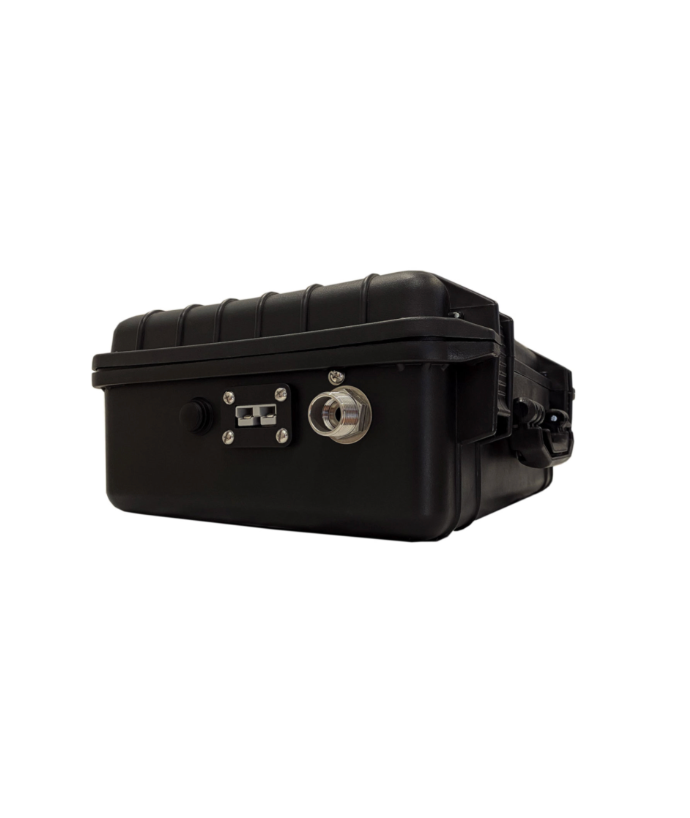

  • Easily accessible connections: inlet-outlet, Anderson plug, on-off switch (IP67 rating)
  • All metal components made of 316-stainless steel (inlet/outlet/base plate)
  • Inbuilt fuse housing
  • Gross weight: ~ 8.5 kg
  • Inlet and outlet protective caps (3x)
  • Lockable
  • Water and chemical resistant
  • Heavy duty latches

Benefits:

• Purifies and sterilises water on demand anywhere you go
• Long lasting 316 stainless steel components & original John Guest fittings
• Bypass connection makes switching to a different water source easy
• Suitable for high water flow rate applications (mains water)
• Compact design, small storage requirements
• Heavy duty casing
• WOMO filter cartridge are easily changed
• Wide range of WOMO replacement cartridges available to suit changing applications and water purity requirements

Applications:

• Remote travel and overlanding
  • Filter and sterilise water from a fresh water sources (surface water only)
  • Not suitable for water with high salinity level
• Caravan, motorhome, 4×4, camper-van, RV
  • Purify mains water (high flow)
  • Fill water tanks

We offer a wide range of accessories that can be connected to all WOMO models making purifying water on demand as easy as it can be. Cartridge performance subject to water quality and usage.
